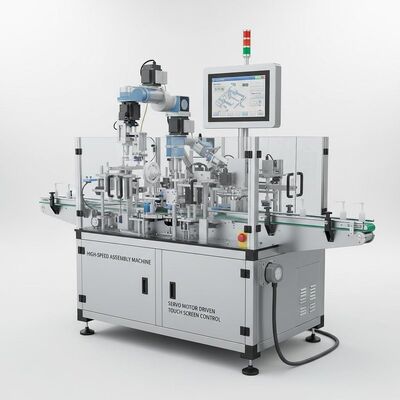

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control
High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

Gambar besar :  High-Speed 1500-2500pcs/hr Servo Motor Driven Lotion Pump and Trigger Sprayer Assembly Machine with Touch Screen Control

Detail produk:
Tempat asal: Cina
Nama merek: SENCAN
Sertifikasi: CE, ISO9001
Nomor model: SC-TK-795
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Negotiate price according to actual situation
Kemasan rincian: kotak kayu
Waktu pengiriman: 90 Hari
Syarat-syarat pembayaran: T/T,L/C
Menyediakan kemampuan: 1-20 set
Detil Deskripsi produk
Sertifikasi Produk: CE bahasa: Inggris/Cina
Produk yang berlaku: Topi jelly Jaminan: 12 bulan
Jenis perakitan: Penuh-Otomatis Konsumsi Udara: 0,5m³/menit
Kapasitas perakitan: kapasitas besar Jenis operasi: Meja putar
metode operasi: Kontrol Layar Sentuh Kisaran ukuran produk: Dapat disesuaikan
Modus operasi: Otomatis Mekanisme: servo
Menyoroti:

1500-2500pcs/hr Lotion Pump Assembly Machine

,

Servo Motor Driven Trigger Sprayer Assembly Machine

,

Touch Screen Control Liquid Sprayer Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine
Key Features

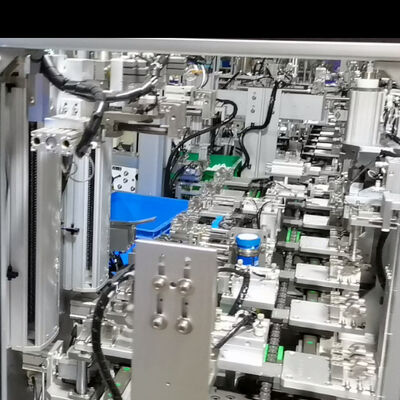

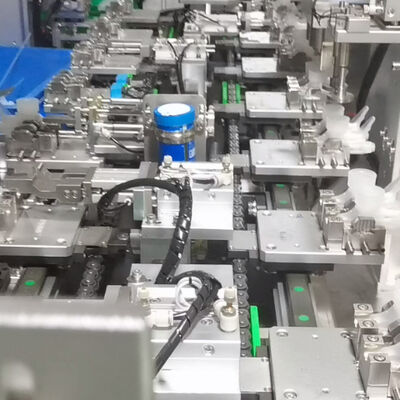

  • Linear sliding rail conveying system with servo motor drive for precise intermittent movement
  • Static fixtures during assembly with precise positioning and secondary positioning at each workstation
  • Independent manipulators at each station for simplified maintenance
  • Cylinder-powered manipulators for faster spare parts changes and easier debugging
  • Automatic silicone oiling during tube insertion process with 4L oil storage capacity
  • Optional enclosure for feeding plate to reduce production noise
  • Comprehensive detection after each assembly process to eliminate defective products
  • PLC system control with touch screen operation interface
Technical Specifications

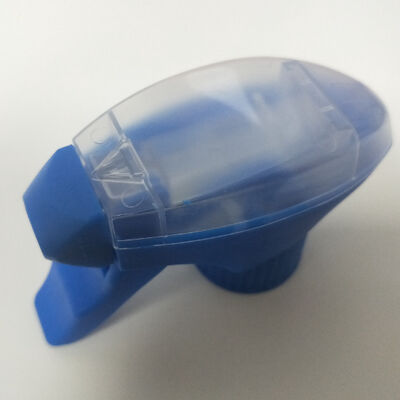

Applicable Products Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed 1500-2500 pieces per hour (customizable to customer requirements)
Qualified Product Rate Above 98%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW per hour
Dimensions Actual size varies with production speed requirements
Weight Approximately 3000kg
Operator Requirement 1 person per machine set
