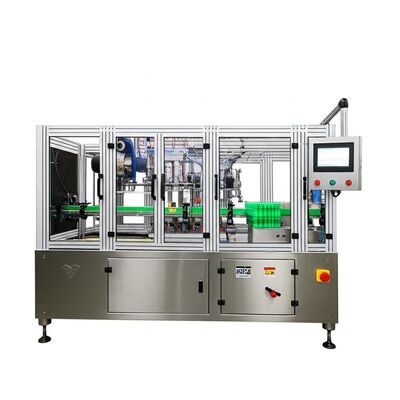

Automatic Euro Cap Assembly Machine with PLC Control Touch Screen, Stainless Steel Construction for 1500-8500pcs/hr Infusion Cap Production

Gambar besar : Automatic Euro Cap Assembly Machine with PLC Control Touch Screen, Stainless Steel Construction for 1500-8500pcs/hr Infusion Cap Production

Detail produk:

Tempat asal:	Cina
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-836

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	Negotiate price according to actual situation
Kemasan rincian:	Kasus Kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Pengukur tekanan udara:	SMK	Produk yang berlaku:	Tutup Infus
Modus Operasi:	Otomatis	Warna:	Warna logam stainless steel
model:	Mesin Perakitan Tutup	Nama Produk:	Mesin perakitan Euro Cap
Tegangan produk:	220V	Kapasitas:	Sesuai dengan kebutuhan pelanggan
Frekuensi:	50Hz	Masa garansi:	12 bulan
Alam:	Otomatis	Sistem kendali:	Kontrol PLC Dengan Layar Sentuh
Tekanan operasi:	0,6 MPa	Ukuran kabel:	Sistem Lima Kabel Tiga Fasa
Menyoroti:	PLC Control Euro Cap Assembly Machine , Stainless Steel Automatic Cap Assembly Machine , 1500-8500pcs/hr Infusion Cap Assembly Machine

Euro Cap Assembly Machine

Automatic cap assembling solution for production lines in packaging and bottling industries

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
Independent driving source at each workstation for simplified daily maintenance
Product-contact surfaces are polished to ensure product protection
Automated foil cutting and welding processes integrated into machine operation
Comprehensive check functions after each assembly step to eliminate defective products
PLC control system with user-friendly human-machine interface requiring minimal operator expertise
Servo motor and indexing drive power system ensuring high assembly precision and qualification rates
Pneumatic power system for reduced maintenance time and simplified technical requirements
Highly customizable configurations based on customer product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1,500 - 8,500 pieces per hour (customizable to customer requirements)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW per hour
Dimensions	Customized based on production speed requirements
Weight	Approximately 2,000 kg
Operator Requirements	3 sets/2 persons recommended, or 1 set per person
