High Speed 1500-2500pcs/hr Lotion Pump and Trigger Sprayer Assembly Machine with Linear Sliding Rail Conveying and PLC Control System

Gambar besar : High Speed 1500-2500pcs/hr Lotion Pump and Trigger Sprayer Assembly Machine with Linear Sliding Rail Conveying and PLC Control System

Detail produk:

Tempat asal:	Cina
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-836

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate price according to actual sitaution
Kemasan rincian:	kotak kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Daya produk:	220V	Frekuensi:	50/60Hz
Kecepatan operasi:	Dapat disesuaikan	Jenis kemasan:	kotak kayu
Tekanan udara:	0.5-0.8MPA	Kecepatan perakitan:	Kecepatan tinggi
Fitur:	Efisiensi Tinggi, Mudah Dioperasikan	Sertifikasi Produk:	CE
Mode operasi:	Otomatis	Pemeliharaan:	Perawatan Rendah
Perlindungan Keamanan:	Tombol berhenti darurat
Menyoroti:	Linear Sliding Rail Conveying Lotion Pump Assembly Machine , PLC Control System Trigger Sprayer Assembly Machine , High Speed 1500-2500pcs/hr Liquid Sprayer Assembly Machine

Lotion Pump Liquid Trigger Sprayer Assembly Machine

Advanced automated assembly system utilizing linear sliding rail conveying technology for consistent, high-precision manufacturing of lotion pumps, trigger sprayers, and spray nozzles.

Key Features

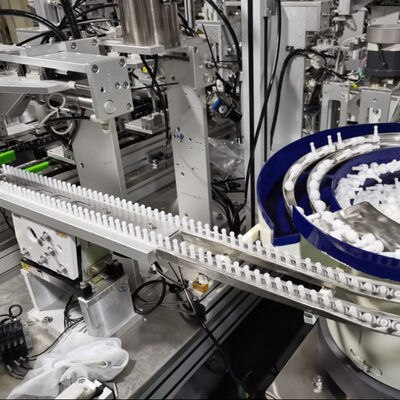

Linear sliding rail conveying system driven by servo motor for precise intermittent movement
Static fixtures with precise positioning devices and secondary positioning at each workstation
Independent manipulators at each station for simplified maintenance and operation
Cylinder-powered manipulators with quick spare parts changeover and easy debugging
Automatic silicone oiling system for tube insertion with 4L oil storage capacity
Optional enclosure for feeding plate to reduce production noise
Integrated detection processes after each assembly step to ensure product quality
PLC system control with intuitive touch screen operation interface

Technical Specifications

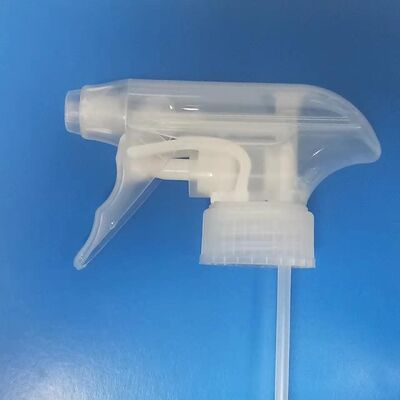

Applicable Products	Lotion pump, shampoo pump, water sprayer, trigger sprayer, perfume pump, spray nozzle
Production Speed	1,500 - 2,500 pieces per hour (customizable to customer requirements)
Product Qualification Rate	Above 98%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW per hour
Dimensions	Custom sizing based on production speed requirements
Weight	Approximately 3,000 kg
Operator Requirement	1 operator per machine

Quality Assurance

Each assembly process includes integrated detection systems to prevent defective products from entering the qualified product stream, ensuring consistent high-quality output.
