Euro Cap Assembly Machine with 4000-12000 Caps per Hour, 99% Qualified Rate, and PLC Control System for Automatic Infusion Cap Assembly

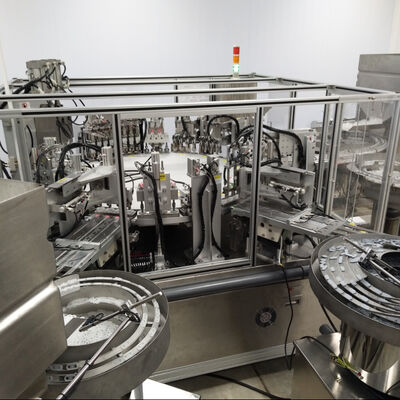

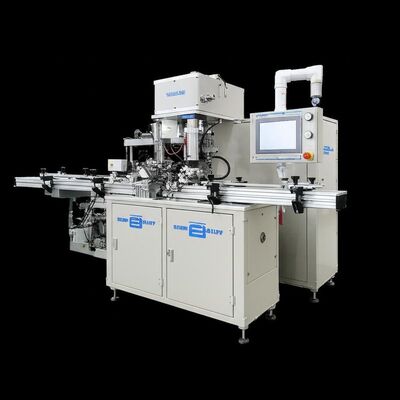

Gambar besar : Euro Cap Assembly Machine with 4000-12000 Caps per Hour, 99% Qualified Rate, and PLC Control System for Automatic Infusion Cap Assembly

Detail produk:

Tempat asal:	Cina
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-833

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate price according to actual situation
Kemasan rincian:	kotak kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Orang Operasi:	1 orang	Ukuran produk:	Besar
Produk yang berlaku:	Tutup infus, tutup euro	Nama Produk:	Mesin perakitan Euro Cap
Rasio efisiensi:	di atas 95%	Fungsi:	Perakitan Produk Topi Medis
Kapasitas produk:	4000-12000 topi per jam	Keuntungan:	Permukaan pengelasan datar dari tutup infus
Tingkat Operasi:	96%	Modus Operasi:	Otomatis
Jenis Infeed:	Disk getaran	Fitur:	Efisiensi Tinggi, Mudah Dioperasikan
Menyoroti:	4000-12000 caps per hour Euro Cap Assembly Machine , 99% qualified rate Automatic Cap Assembly Machine , PLC control system Infusion Cap Assembly Machine

Euro Cap Assembly Machine

Engineered to reduce manual intervention while improving safety and consistency in cap assembly tasks for pharmaceutical packaging applications.

Key Features

Automatic assembly of caps for plastic IV infusion bags and bottles
Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even, stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process eliminates defective products
PLC control system with user-friendly human-machine interface requires minimal operator training
Servo motor + indexing drive main power ensures high assembly precision and qualification rates
Pneumatic power system reduces maintenance downtime
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400 pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person
