Euro Cap Assembly Machine with 4500-22000 per/hour Production Capacity, 99% Qualified Rate, and PLC Control for Infusion Caps

Gambar besar : Euro Cap Assembly Machine with 4500-22000 per/hour Production Capacity, 99% Qualified Rate, and PLC Control for Infusion Caps

Detail produk:

Tempat asal:	Cina
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-831

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate price according to actual sitaution
Kemasan rincian:	kotak kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Kapasitas Produksi:	4500-22000 per/jam	Tarif yang memenuhi syarat:	99%
Kontrol:	PLC	Rasio efisiensi:	di atas 95%
Jenis tutup:	Tutup Infus	Aplikasi:	Rakitan Tutup untuk botol bergaya Euro
Konfigurasi:	Mesin perakitan tutup flim	Topi yang Cocok:	Euro Caps
Mekanisme:	servo	Bahan produk:	Logam
Tingkat otomatisasi:	Sepenuhnya otomatis	Ukuran produk:	Standar
Kekuatan utama:	Servo Moter
Menyoroti:	4500-22000 per/hour Euro Cap Assembly Machine , 99% Qualified Rate Infusion Cap Assembly Machine , PLC Control Automatic Cap Assembly Machine

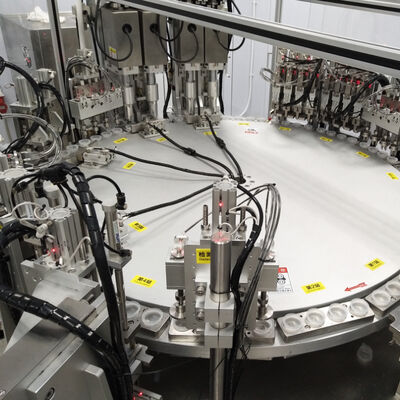

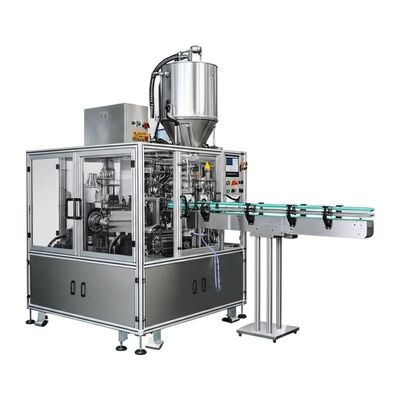

Euro Cap Assembly Machine

Designed to minimize downtime and maintenance needs while delivering exceptional cap assembly performance for plastic IV infusion bags and bottles.

Key Features

Constructed from stainless steel and aluminum alloy, compliant with ISO and GMP standards
Independent driving source at each workstation for convenient daily maintenance
Product-contact surfaces polished to protect product integrity
Servo-linked rod structure system ensures even and stable pressure for consistent cap pressing quality
Integrated inspection function after each assembly process to eliminate defective products
PLC control system with human-machine interface for easy operation
Main power composed of servo motor and indexing drive for high assembly precision
Pneumatic power system reduces maintenance time
Highly customizable to meet specific customer requirements and production demands

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400 pcs/hr (customizable according to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed requirements
Weight	Approximately 2300kg
Operator Requirements	3 sets/2 persons, recommended 1 set/person

Customization Available: Machine specifications and production capacity can be tailored to meet your specific manufacturing requirements and production volume needs.
