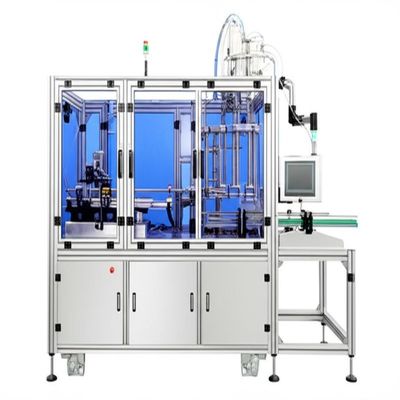

Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed

Gambar besar : Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-825

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1set
Harga:	Negotiate price according to actual situation
Kemasan rincian:	kotak kayu
Waktu pengiriman:	90 Hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Frekuensi:	50Hz	Manipulator:	Buatan sendiri
Jenis perakitan:	Sepenuhnya otomatis	Voltase:	220V
Fitur:	Efisiensi Tinggi, Mudah Dioperasikan	kecepatan:	Kecepatan tinggi
Jenis tutup:	Semua produk perakitan kebutuhan medis	Metode perakitan:	Pengindeksan Putar
Kekuatan aktif:	Motor atau silinder servo	Sedang mengemas:	kotak kayu
Metode operasi:	Kontrol Layar Sentuh	Kapasitas:	100 unit per menit
Nilai Otomasi:	Otomatis	Operator:	1 set/orang
Menyoroti:	99% Qualified Rate IV Bag Spike Ports Assembly Machine , 8000-15000pcs/hr Injection Ports Assembly Machine , 220V Voltage Medical Product Assembly Machine

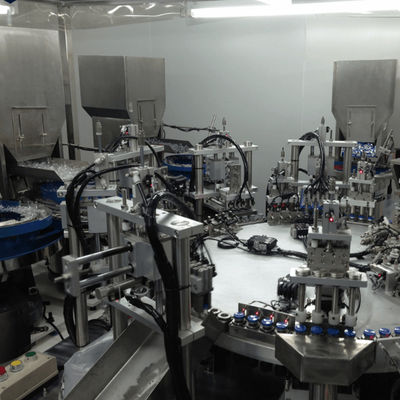

IV Bag Spike Ports and Injection Ports Assembly Machine

Product Features

Automatically assembles spike ports and injection ports for non-PVC double tube soft bags, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs
Constructed with stainless steel and aluminum alloy materials, compliant with ISO and GMP pharmaceutical packaging standards
Titanium alloy aluminum plastic cap sealing material with mirror-polished surface ensures smooth, high-quality seals
Gear-driven sealing knife rotation with individual cap sealing for high qualification rates
Each workstation includes detection systems to verify assembly accuracy
Servo motor and indexing drive power system enables high-precision assembly
PLC control system with touch screen HMI for operation

Technical Specifications

Applicable Products	Aluminum-plastic caps & ports PC ports, spike ports and injection ports for non-PVC soft tube IV bags
Production Speed	8,000-15,000 pieces/hour (customizable)
Product Qualification Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kW/hour
Dimensions	L3500 × W3400 × H1800 (mm) - Actual size varies with production speed
Weight	Approximately 3000kg
Operator Requirement	1 person per machine
