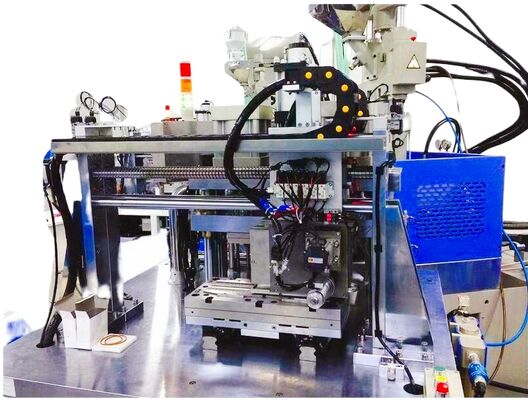

High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding

High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding
High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding

Gambar besar :  High Accuracy Safety Lancet Production Line with Automatic Safety Lock and High Productivity for Medical Injection Molding

Detail produk:
Tempat asal: Tiongkok
Nama merek: SENCAN
Sertifikasi: CE, ISO9001
Nomor model: SC-TP-814
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Negotiate price according to actual situation
Kemasan rincian: kotak kayu
Waktu pengiriman: 90 Hari
Syarat-syarat pembayaran: T/T,L/C
Menyediakan kemampuan: 2-20 Set
Kontak
Detil Deskripsi produk
Modus Operasi: Setengah otomatis Voltase: 220V-380V
Sistem Pengendalian: Kontrol PLC Jenis Produk: Peralatan medis
Sedang mengemas: kotak kayu Ketepatan: Tinggi
Jenis: Indeks motin Kontrol: PLC
Proses produksi: Perakitan otomatis Jenis kemasan: kotak kayu
Catu Daya: 220V/50Hz Fitur Keamanan: Kunci pengaman otomatis
Menyoroti:

High Accuracy Safety Lancet Production Line

,

Automatic Safety Lock Blood Lancet Manufacturing Machine

,

High Productivity Medical Injection Molding Machine

State-of-the-Art Safety Lancet Production Line

High-performance manufacturing solution for precision needle-based medical products with exceptional efficiency and reliability.

Key Features
  • Specialized for pick-and-place and injection molding of needle products including blood lancets and blood collection needles
  • Dual needle hoppers with 200,000-needle capacity enabling continuous 24-hour production
  • Inclined angle assembly prevents needle tip damage during production
  • Integrated binding and tightening system maintains needle organization in hoppers
  • Quick-load hopper design allows full reloading in under 3 minutes
  • 10-15 second production cycle delivers high output with stable performance
  • Patented needle adsorption system (non-vacuum) reduces energy consumption
  • Fully customizable to match specific production requirements and capacities
Technical Specifications
Applicable Products Peripheral blood lancets, venous blood collection needles, and other needle-based injection molded products
Production Speed Variable based on molding cavity quantity
Product Qualification Rate Above 99%
Operational Rate Above 97%
Power Requirements AC380V, 50Hz, 4kW/hour
Dimensions L1950 × W1250 × H1900mm (actual size may vary)
Weight Approximately 2800kg
Operator Requirement 1 person per machine

Label:

Mesin Lancet Darah,

Mesin perakitan jarum otomatis,

Mesin Manufaktur Lancet Darah
