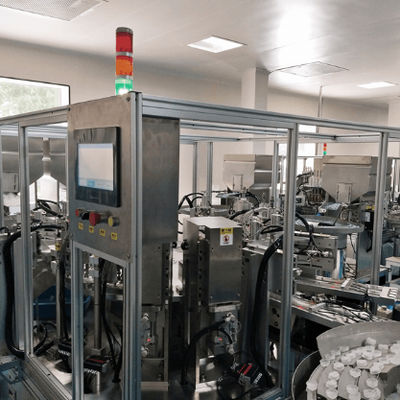

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Gambar besar : High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-821

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate price according to actual situation
Kemasan rincian:	kotak kayu
Waktu pengiriman:	90 Hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Ban Operasi:	Meja putar	Tutup yang berlaku:	Euro Caps
Ukuran Produk:	Besar	Ketepatan:	Tinggi
Jenis Produk:	Mesin perakitan	Warna:	Warna logam stainless steel
Antarmuka operasi:	Layar sentuh	Jaminan:	1 tahun
Kapasitas Produksi:	4500-16000 per/jam	Catu Daya:	220V/50Hz
Tekanan udara:	0.6-0.8MPA	Konfigurasi:	Infus mesin perakitan flim cap
Model produk:	Topi infus medis	Merek Produk:	euro
Voltase:	220V
Menyoroti:	99% Qualified Rate Euro Cap Assembly Machine , 95% Operation Rate Euro Cap Assembly Machine , 220V/50Hz Euro Cap Assembly Machine

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
