Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

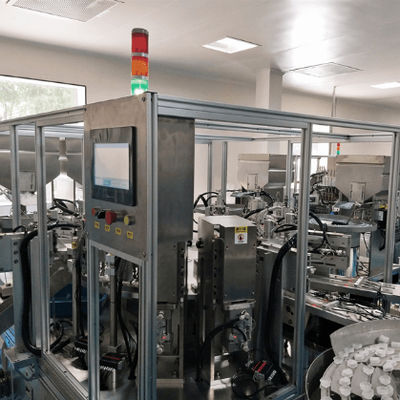

Gambar besar : Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

Detail produk:

Tempat asal:	CINA
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-818

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	Negotiate price according to actual situation
Kemasan rincian:	Kasus kayu
Waktu pengiriman:	90 Hari
Syarat-syarat pembayaran:	T/T,L/C
Menyediakan kemampuan:	2-20 Set

Kontak

Detil Deskripsi produk

Kapasitas produk:	4000-12000 topi per jam	Model:	Mesin Perakitan Tutup
Nilai Otomasi:	Otomatis	Merek Produk:	euro
Kecepatan operasi:	Dapat disesuaikan	Kekuatan aktif:	Motor atau silinder servo
Tingkat Operasi:	98%	Pengukur tekanan udara:	Smc
Jenis tutup:	Tutup Infus
Menyoroti:	4000-12000 caps per hour IV Infusion Peel-foil Cap Assembly Machine , 99% Qualified Rate Euro Cap Assembly Machine , 95% Operation Rate Infusion Cap Assembly Machine

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
