Mesin perakitan Euro Cap
Created with Pixso.

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Nama merek: SENCAN
Nomor Model: SC-TP-815
MOQ: 1 Set
harga: Negotiate price according to actual situation
Ketentuan Pembayaran: T/T,L/C
Kemampuan Pasokan: 2-10 SET
Informasi Rinci
Tempat asal:
CINA
Sertifikasi:
CE, ISO9001
Kapasitas perakitan:
4500-12000 per jam
Tekanan udara:
0,6 MPa
Jenis:
Otomatis
Kecepatan:
Dapat disesuaikan
Kekuatan utama:
Servo
Menyetir:
Motor servo
Jenis botol:
botol-botol plastik
Produk yang berlaku:
Tutup lipat ganda
Pengukur tekanan udara:
Smc
Kontrol:
PLC
Mekanisme:
Servo
Modus Operasi:
Otomatis
Bahan produk:
Logam/plastik
Kemasan rincian:
Kasus kayu
Menyoroti:

0.6 MPa Air Pressure Euro Cap Assembly Machine

,

4500-12000 per/hour Automatic Cap Assembly Machine

,

99% Qualified Rate Infusion Cap Assembly Machine

Deskripsi Produk

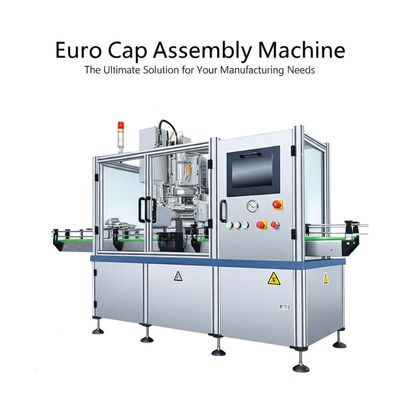

Euro Cap Assembly Machine - The Ultimate Solution for Your Manufacturing Needs
Product Features
  • Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
  • Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
  • Independent driving source at each workstation for simplified maintenance
  • Product-contact surfaces are polished for optimal product protection
  • Automated foil cutting and welding process
  • Integrated check function after each assembly step to eliminate defective products
  • User-friendly PLC control system with human-machine interface operation
  • Precision servo motor + indexing drive system ensures high assembly accuracy
  • Pneumatic power system reduces maintenance time and technical requirements
  • Fully customizable to meet specific product specifications and production demands
Technical Specifications
Applicable Products Peel seal foil caps, foil seal closures and lids
Production Speed 1,500-8,500 pieces/hour (customizable)
Product Qualification Rate Above 99%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW/hour
Dimensions Varies according to production speed requirements
Weight Approximately 2,000kg
Operator Requirements 3 sets/2 persons (recommended 1 set/person)
