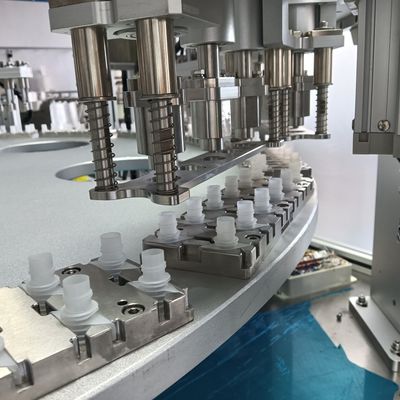

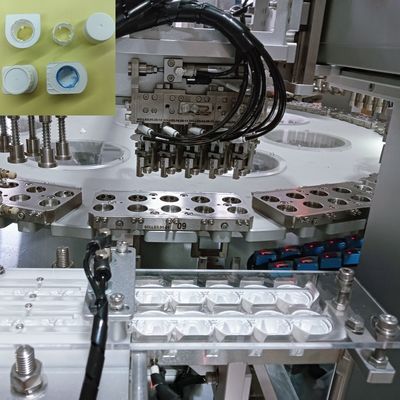

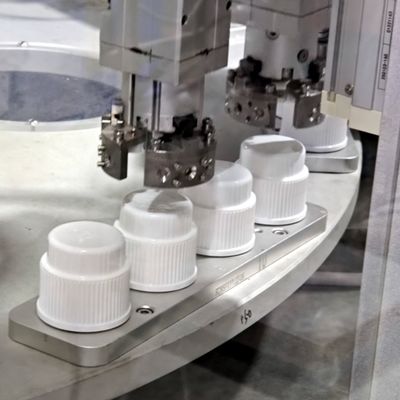

PLC Control System Cap Screwing Automatic Assembly Machine With High Qualified Rate And Automatic Detection Function
Detil Deskripsi produk
| Produk yang cocok: |
Mesin sekrup tutup otomatis |
Sertifikasi Produk: |
CE, ISO |
| Kekuatan aktif: |
Servo |
Kapasitas perakitan: |
Sesuai dengan kebutuhan pelanggan |
| Bahan: |
baja tahan karat |
| Menyoroti: |
Mesin pemasangan kontrol PLC dengan deteksi otomatis, mesin sekrup tutup otomatis dengan tingkat kualifikasi tinggi, mesin perakitan kebutuhan sehari-hari dengan kontrol PLC |
Features
1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.
Properties
|
Applicable products
|
Helicap, 3 parts caps requiring orientation and screwing assembly
|
|
Production speed
|
3000-12000pcs/hr (according to customer’s requirement)
|
|
Rate of qualified product
|
Above 99%(depends on raw material quality)
|
|
Rate of operation rate
|
Above 95%
|
|
Power source
|
AC380V,50Hz,4kw/hr
|
|
Dimension
|
Actual size varied with different production speed
|
|
Weight
|
About 2850kg
|
|
Operator
|
1set/person
|
