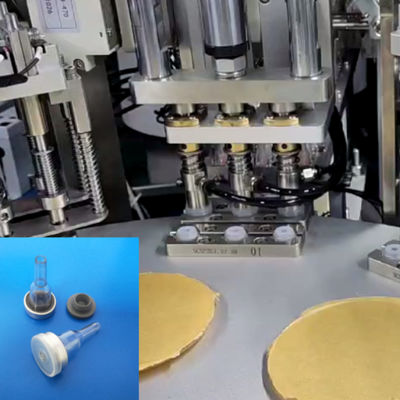

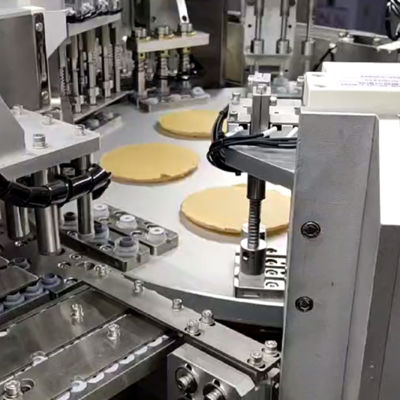

Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with Servo Mechanism 8000-15000pcs/hr and 99% Qualified Rate

Gambar besar : Automatic IV Bag Spike Ports and Injection Ports Assembly Machine with Servo Mechanism 8000-15000pcs/hr and 99% Qualified Rate

Detail produk:

Tempat asal:	CINA
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-781

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate the price according to actual situation
Kemasan rincian:	Kasing kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/t, l/c
Menyediakan kemampuan:	3-20 set

Kontak

Detil Deskripsi produk

Jenis pengemasan:	Kasing kayu	Mekanisme:	Servo
Efisiensi produksi:	98%	Jenis Operasi:	Turetable/Mechanical
Nilai Otomasi:	Otomatis	Tekanan udara:	7kg/m3
Aplikasi:	Industri Medis	Jenis tutup:	Semua produk perakitan kebutuhan medis
Ketepatan:	Tinggi	Jaminan:	1 tahun
Kontrol:	Plc	Operator:	Tunggal atau ganda
Menyoroti:	Servo Mechanism IV Bag Spike Ports Assembly Machine , 8000-15000pcs/hr Injection Ports Assembly Machine , 99% Qualified Rate Medical Product Assembly Machine

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
