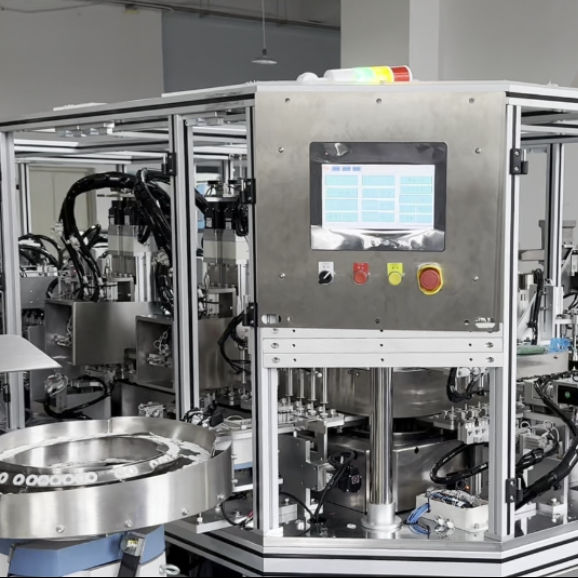

Fully Automated Lotion Pump Assembly Machine 220V 1500-2500pcs/hr

Nama merek:	SENCAN
Nomor Model:	SC-TP-784
MOQ:	1 set
harga:	Negotiate price according to actual situation
Ketentuan Pembayaran:	T/t, l/c
Kemampuan Pasokan:	3-20 set

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

CINA

Sertifikasi:

CE, ISO9001

Tarif yang memenuhi syarat:

98%

Sertifikasi Produk:

CE, ISO

Level Otomasi:

Sepenuhnya otomatis

Kekuatan utama:

Servo+silinder

Jenis produk:

Mesin perakitan

Metode perakitan:

Pemberian makan dan perakitan otomatis

Periode garansi:

1 tahun

Voltase:

220v

Keuntungan:

Kedua ukuran dapat dirakit bersama

Ukuran kabel:

Sistem Lima Kabel Tiga Fasa

Kapasitas:

Tinggi

Sistem Deteksi:

Sensor fotoelektrik

Kekuatan aktif:

Servo Moter

Kemasan rincian:

Kasing kayu

Menyoroti:

fully automated lotion pump machine 220V

lotion pump assembly machine 1500-2500pcs/hr

daily necessities assembly machine with warranty

Deskripsi Produk

Features

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.

2. Manipulators of each station are independent, simple and easy for daily maintenance.

3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.

4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.

5. Enclosure for feeding plate can be equipped to reduce noise during production.

6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

7. Whole equipment controlled by PLC system and touch screen operation.

Properties

Applicable products	lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle
Production speed	1500-2500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
