Automatic Cap Lining Machine 380V for Plastic & Metal Caps

Nama merek:	SENCAN
Nomor Model:	SC-TP-784
MOQ:	1 set
harga:	Negotiate the price according to actual situation
Ketentuan Pembayaran:	T/t, l/c
Kemampuan Pasokan:	3-20 set

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001

Fitur Produk:

Lapisan tutup otomatis, kecepatan yang dapat disesuaikan, mudah dioperasikan

Bahan Tutup yang Cocok:

Plastik, Aluminium, Logam

Sistem Kontrol:

Kontrol PLC

aplikasi produk:

Minuman, farmasi, kosmetik, dan industri lainnya

Jenis produk:

Mesin Pembuat Topi

Tarif yang memenuhi syarat:

Persyaratan 99%)

Operator:

1 set/orang

Irama:

Jalur Produksi Aliran

Nilai otomatis:

Otomatis

Tegangan produk:

380v

Operasi:

Otomatis

Jenis pengemasan:

Kasing kayu

Kemasan rincian:

Kasing kayu

Menyoroti:

380V automatic cap lining machine

plastic cap lining machine

metal cap lining machine

Deskripsi Produk

Features

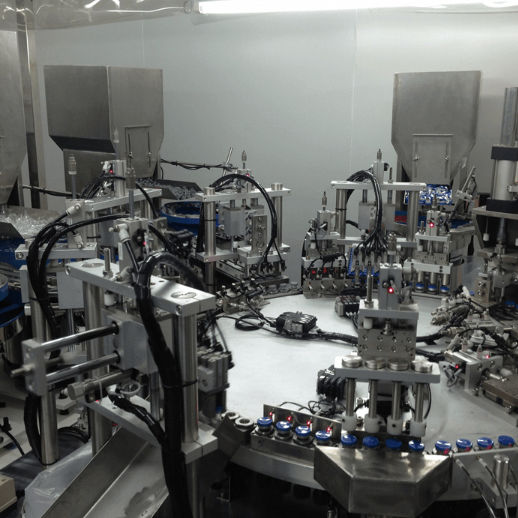

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
