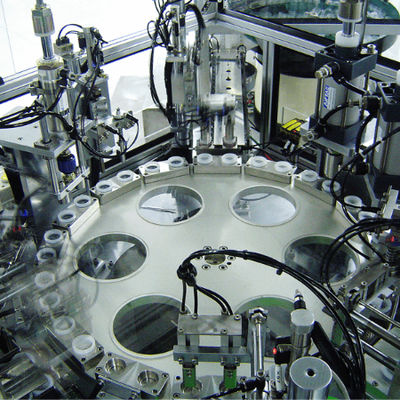

Automatic Euro Cap Assembly Machine 4000-12000 caps/hr 380V
-
-
Gambar besar :
Automatic Euro Cap Assembly Machine 4000-12000 caps/hr 380V
|
Detail produk:
| Tempat asal: |
CINA |
| Nama merek: |
SENCAN |
| Sertifikasi: |
CE, ISO9001 |
| Nomor model: |
SC-TP-761 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: |
1 set |
| Harga: |
Negotiate the price according to actual situation |
| Kemasan rincian: |
Kasing kayu |
| Waktu pengiriman: |
90 hari |
| Syarat-syarat pembayaran: |
T/t, l/c |
| Menyediakan kemampuan: |
3-20 set |
|
Detil Deskripsi produk
| Alam: |
Otomatis |
Kontrol: |
Plc |
| Antarmuka operasi: |
Layar sentuh |
Konsumsi Udara: |
0,5 m3/mnt |
| Kecepatan operasi: |
Bisa disesuaikan |
Kapasitas produk: |
4000-12000 topi per jam |
| Daya produk: |
380v |
Produk yang berlaku: |
Tutup infus, tutup euro |
| Drive utama: |
Motor servo dan cakram pengindeksan |
Ukuran kabel: |
Sistem Lima Kabel Tiga Fasa |
| Rasio efisiensi: |
di atas 95% |
Operator: |
Tunggal atau ganda |
| Fitur: |
Efisiensi Tinggi, Mudah Dioperasikan |
| Menyoroti: |
Automatic Euro Cap Assembly Machine 380V, Euro Cap Assembly Machine 12000 caps/hr, Euro Cap Assembly Machine high-speed |
Features
1. For assembly caps and closures require ultrasonic welding.
2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.
3. Main power servo motor + indexing drive, high precision and high qualified product rate.
4. Titanium alloy welding head, international supplier of ultrasonic welding device with high quality and very long service life.
5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.
Properties
|
Applicable products
|
Multi-piece plastic caps and closures requiring ultrasonic welding
|
|
Production speed
|
8000-15000pcs/hr (according to customer’s requirement)
|
|
Rate of qualified product
|
Above 99%
|
|
Rate of operation rate
|
Above 95%
|
|
Power source
|
AC380V,50Hz,4kw/hr
|
|
Dimension
|
L3500×W3400×H1800(mm) Actual size varied with different production speed
|
|
Weight
|
About 3000kg
|
|
Operator
|
1set/person
|
