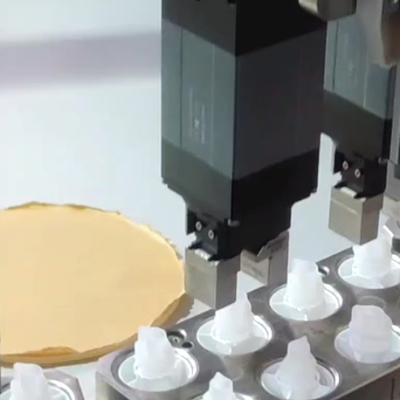

Stainless Steel Cap Screwing Machine for Bottle Capping

Gambar besar : Stainless Steel Cap Screwing Machine for Bottle Capping

Detail produk:

Tempat asal:	Cina
Nama merek:	SENCAN
Sertifikasi:	CE, ISO9001
Nomor model:	SC-TP-745

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	Negotiate the price according to actual situation
Kemasan rincian:	Kasing kayu
Waktu pengiriman:	90 hari
Syarat-syarat pembayaran:	T/t, l/c
Menyediakan kemampuan:	3-20 set

Kontak

Detil Deskripsi produk

Jaminan:	1 tahun	Bahan:	Baja tahan karat
Ukuran mesin host:	L1200W900H1670mm	Tekanan udara:	0.6-0.8MPA
Tegangan catu daya:	AC380V 50/60Hz	Kecepatan:	Bisa disesuaikan
Aplikasi:	Capping botol untuk berbagai cairan	Bahan utama:	Baja tahan karat
Menyoroti:	stainless steel bottle capping machine , cap screwing machine for bottles , stainless steel cap screwing machine

Features

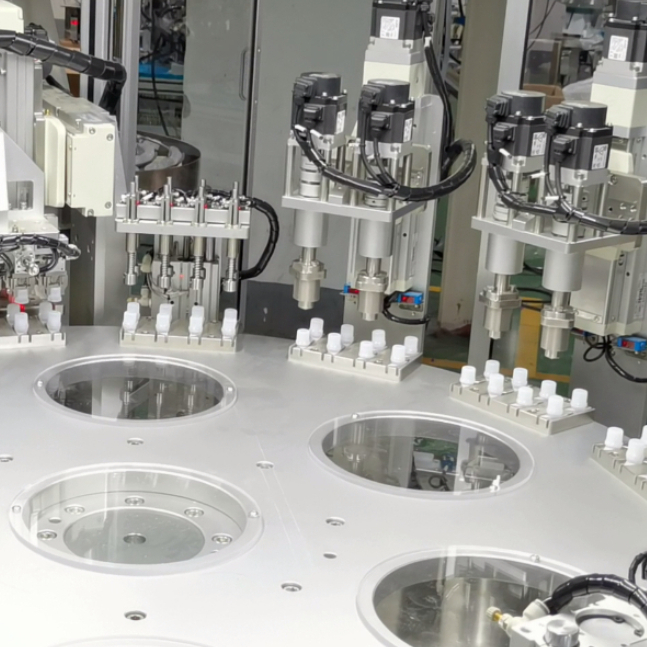

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require screw fasten assembling, jujce cap , daily cap
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
