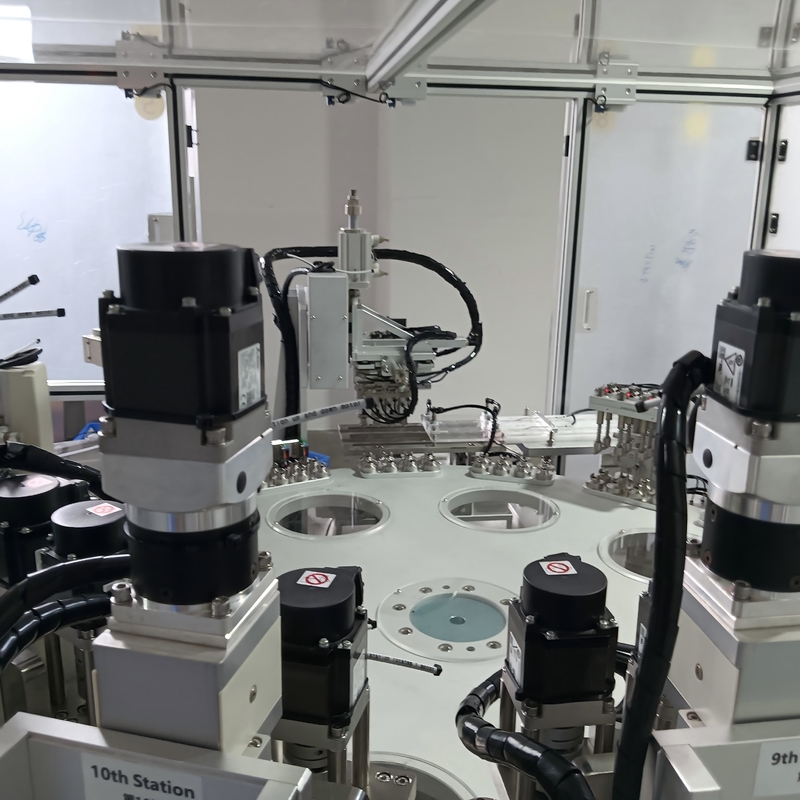

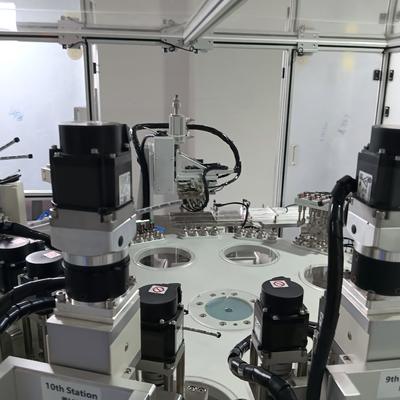

The Silica Gel Desiccant Cap Filling &Sealing Assembly Machine combines desiccant caps feeding,silica gel desiccant filling, cardboard hot sealing, qualified caps detection, defective caps rejection, counting functions in one line.
Features
1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.
2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.
3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.
4. Sealing paper waste will be automatically collected to reduce labor of operators.
5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.
6.Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.
Properties
| Applicable products |
desiccant cap, silica gel desiccant cap, safety cap, CRC cap |
| Production speed |
1500-8500pcs/hr (according to customer’s requirement) |
| Rate of qualified product |
Above 99% |
| Rate of operation rate |
Above 95% |
| Power source |
AC380V,50Hz,4kw/hr |
| Dimension |
Actual size varied with different production speed |
| Weight |
About 2000kg |
| Operator |
3sets/2persons,recommend 1set/person |
